SC Fixed Fiber Attenuator,Adaptor Type,7dB P/N:FOAT-F-SC/PC-07-1310-P manufacturer from China JKY Fiber Optics Industry Co.,LIMITED

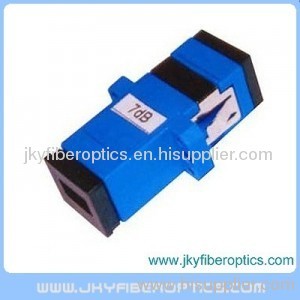

SC Fixed Fiber Attenuator,Adaptor Type,7dB

Price:	0.1~10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: P/N:FOAT-F-SC/PC-07-1310-P

Production Capacity: 100000000pcs

Delivery Date: 5 working days

SC fixed: adaptor type attenuator

SC fiber attenuator: adaptor type

plastic: material

optical fiber: SC fixed fiber attenuator

Means of Transport: Air

Packing: good packing

Brand Name: JKY Fiber Optics

SC fiber optical: attenuator

SC optical fiber: adaptor type attenuator

1~30dB: optional

SC Fixed Fiber Attenuator,Adaptor Type,7dB

SC Fixed Fiber Attenuator,Adaptor Type,7dB

APPLICATIONS

Telecommunication
Local area network
CATV,FTTH
Fiber optic sensors
EDFA loop tests and measurements
Optical transmission system
Testing instruments

FEATURES

Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (Push-Pull)
High mechanical resistance

SPECIFICATIONS:

Item	Description
Operating Wavelength	SM: 1200-1600nm or 1310nm, 1550nm
Operating Wavelength	MM: 850nm, 1300nm
Return Loss	Less than 50 dB (SPC)
	Less than 55 dB (UPC)
	Less than 65 dB (APC)
Attenuation Accuracy	+/-0.5 (1-10) dB
Attenuation Accuracy	+/-1.0 (11-30) dB
Polarization Dependent Loss	Less than 0.2dB
Maximum Optical Input Power	200mW
Operating Temp. Range Storage Temp.Range	-40℃ ~ 75℃ -50℃ ~ 85℃
